Electrical isolation
Helps protect low-voltage control circuits from high-voltage switching-side interference and damage.
Orient product line focus
Gate drive optocouplers for high-reliability power control.
A focused Orient portfolio for isolated IGBT and MOSFET gate drive designs, covering 1A to 4A peak output current and multiple package options for industrial, renewable energy, charging, UPS, and automotive systems.
1A-4A
Peak output current
6
Package families
IGBT / MOSFET
Gate drive applications
Technical overview
Electrical isolation between control logic and power switching stages.

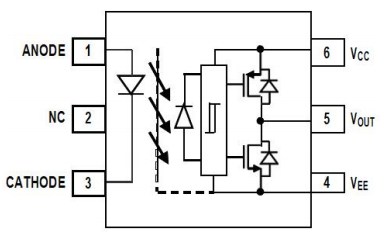

Gate drive optocouplers combine an input LED with an integrated power output stage to provide electrical isolation while driving the gate of IGBT and MOSFET devices. Their higher output voltage and current capability help meet the demanding drive requirements of modern power modules.
Key advantages
Built for noisy, high-voltage power electronics environments.
Rail-to-rail output
Output voltage close to VCC and GND supports lower switching loss in optocoupler-driven IGBT and MOSFET circuits.

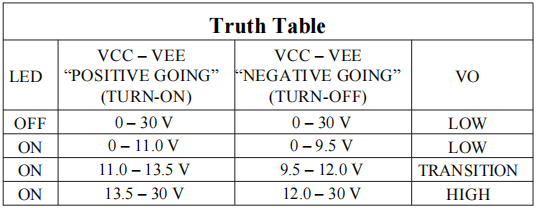

UVLO protection
Undervoltage lockout turns off output when supply voltage is insufficient, helping avoid unsafe linear-region operation.
Strong drive capability
High peak output current supports direct drive of demanding power modules, including 1200V / 100A-class IGBT applications.
High noise immunity
CMTI performance up to 35-50 kV/us helps resist switching dV/dt noise and reduce false triggering.
Product matrix
Full current coverage with multiple package choices.
Orient's gate drive optocoupler line covers standard cost-effective drivers and intelligent drivers with additional protection functions such as DESAT detection, soft shutdown, active Miller clamp, and fault feedback.
| Peak Current | DIP8 / SMD8 | SO6W1 / SO6W | SOP5 | LSOP8 | SO16 |
|---|---|---|---|---|---|
| 1A | OR-340 | OR-155E | |||
| 1.5A | OR-3150 | OR-314 | OR-330J OR-331J |
||
| 2.5A | OR-152 | OR-H313 | OR-332J OR-333J |
||
| 3A | OR-3120 OR-250H |
OR-341 | OR-M341 | ||
| 4A | OR-343 |
Compact package
SOP5 for compact PCB designs where board area is limited.
General package
DIP8 / SMD8 and SO6W1 / SO6W for high withstand voltage and creepage needs.
Enhanced package
LSOP8 and SO16 for higher electrical safety requirements and wider spacing.
Applications
For motor drives, renewable energy, charging, UPS, and vehicle electronics.
Inverters and servo drives
Controls IGBT or MOSFET power switches for efficient and precise motor speed control.
Photovoltaic inverters
Supports DC-to-AC conversion stages by driving IGBT power switching devices.
EV charging and automotive systems
Used in bus switching, vehicle air-conditioning control, and compact DC / AC power stages.
UPS and power conversion
Provides isolated drive control in rectifier and inverter sections of high-power UPS systems.
Mainwin Technology
Need help choosing an Orient gate drive optocoupler?
Share your target current, package, insulation requirement, application, and replacement model. Mainwin will help confirm the suitable Orient option for overseas supply.
